Baldor AEM2237-4
* Actual Product May Differ From Image
AEM2237-4
Part Number: AEM2237-4
Model/Spec Number: 781568116951
Manufacturer: Baldor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Heavy duty cast iron frames, Double sheilded ball bearings, Shaft slinger ODE and DE, Epoxy paint, 65 ambient 1.00 service factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$3,945.24 /each
Standard Repair Lead Time: 1 Week Rush Option: 1-3 Days
Standard Repair Lead Time: 1 Week Rush Option: 1-3 Days
Product Specifications
| Enclosure: | TEFC | Frame Size: | 254U | Agency Approvals: | CSA;UR |
| Frame Material: | Iron | Conduit Box Material: | Cast Iron | Poles: | 4 |
| Insulation Class: | F | Shaft Rotation: | Reversible | Base: | Rigid |
| Horsepower: | 7 1/2 Hp | Service Factor: | 1.00 | Motor Weight: | 227.0000 |
| Duty Cycle: | Continuous | Synchronous RPM: | 1800 | Speed RPM: | 1765 |
| IEC or NEMA Standard: | NEMA | Overall Length: | 23.11 in | Voltage: | 460 |
| Phase: | Three Phase | Frequency: | 60 | Full Load Current: | 9.1 |
| Power Factor: | 82 | Rated Efficiency: | 91.7 % | XP Temp Code: | Without |
| End Plate (DE): | STANDARD | Multispeed Code: | Single Speed | NEMA Design: | B |
| Bearing DE: | 6309 | Bearing ODE: | 6208 | Ambient Temp: | 65 °C |
| Mount Type: | F1 | Shaft Diameter: | 1.3750 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | List: | 5470.00 |

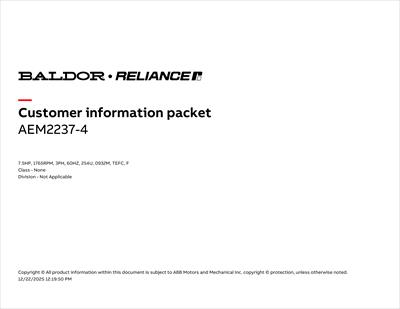

Documents
A&C Electric is a certified distributor service center.
