Repairs and Service For

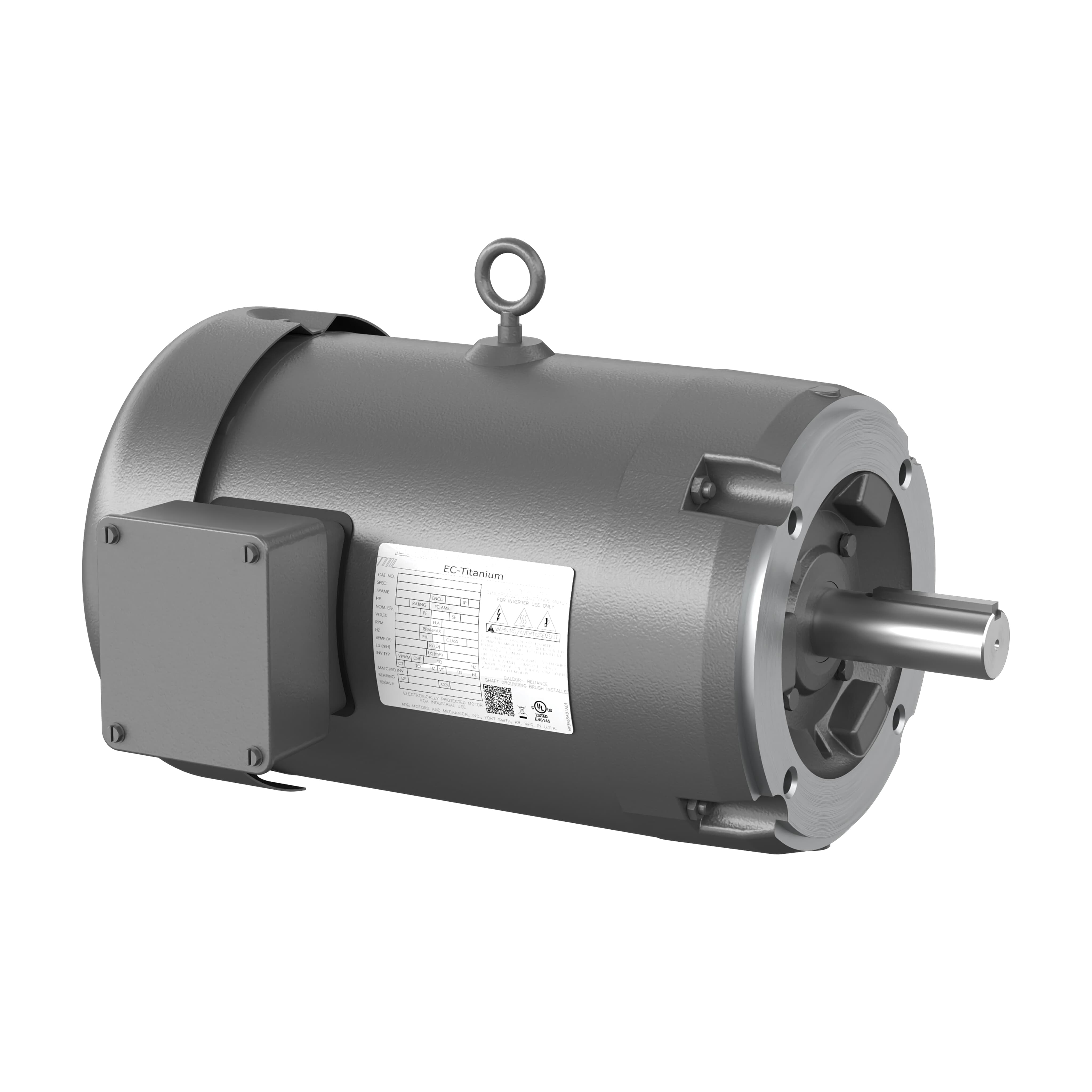

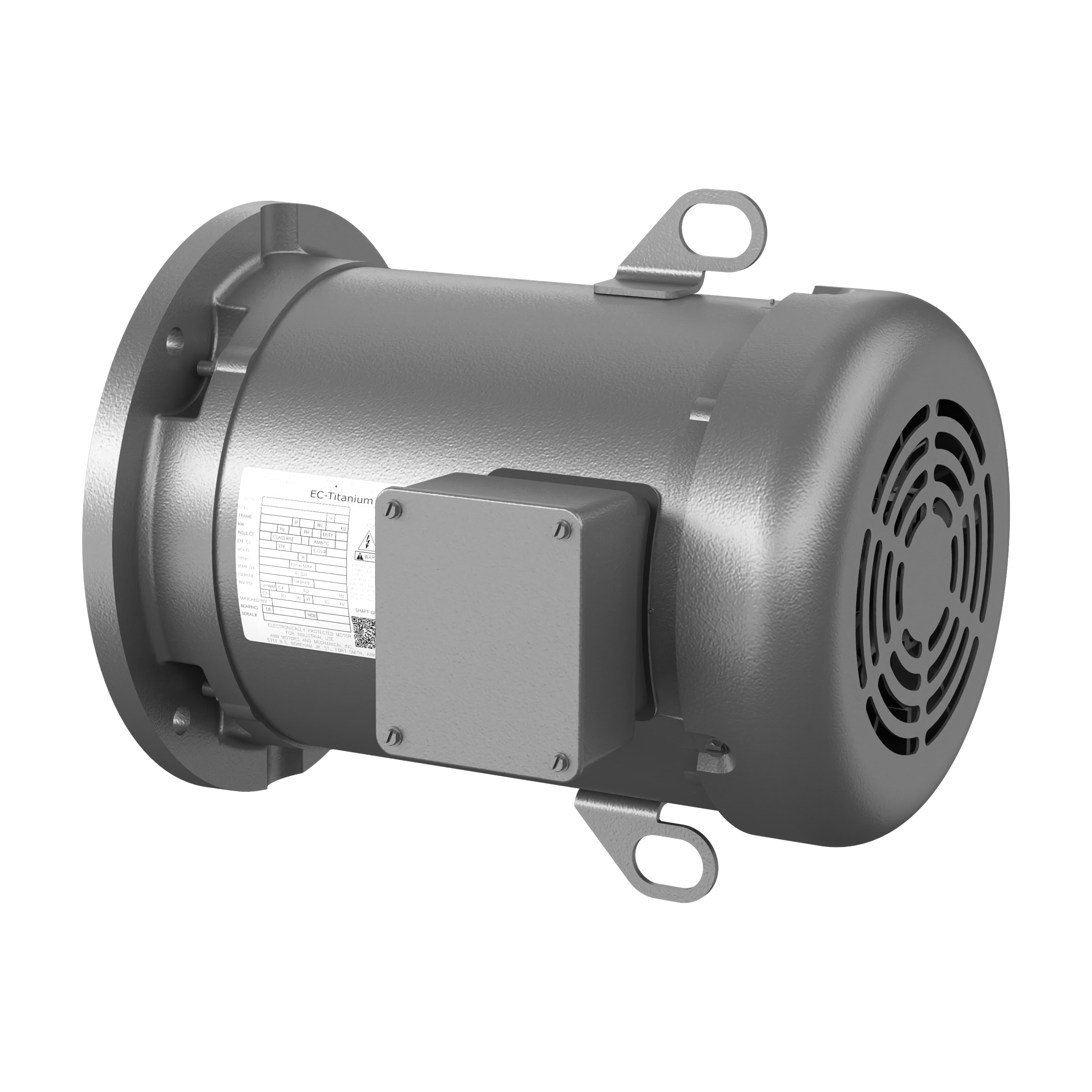

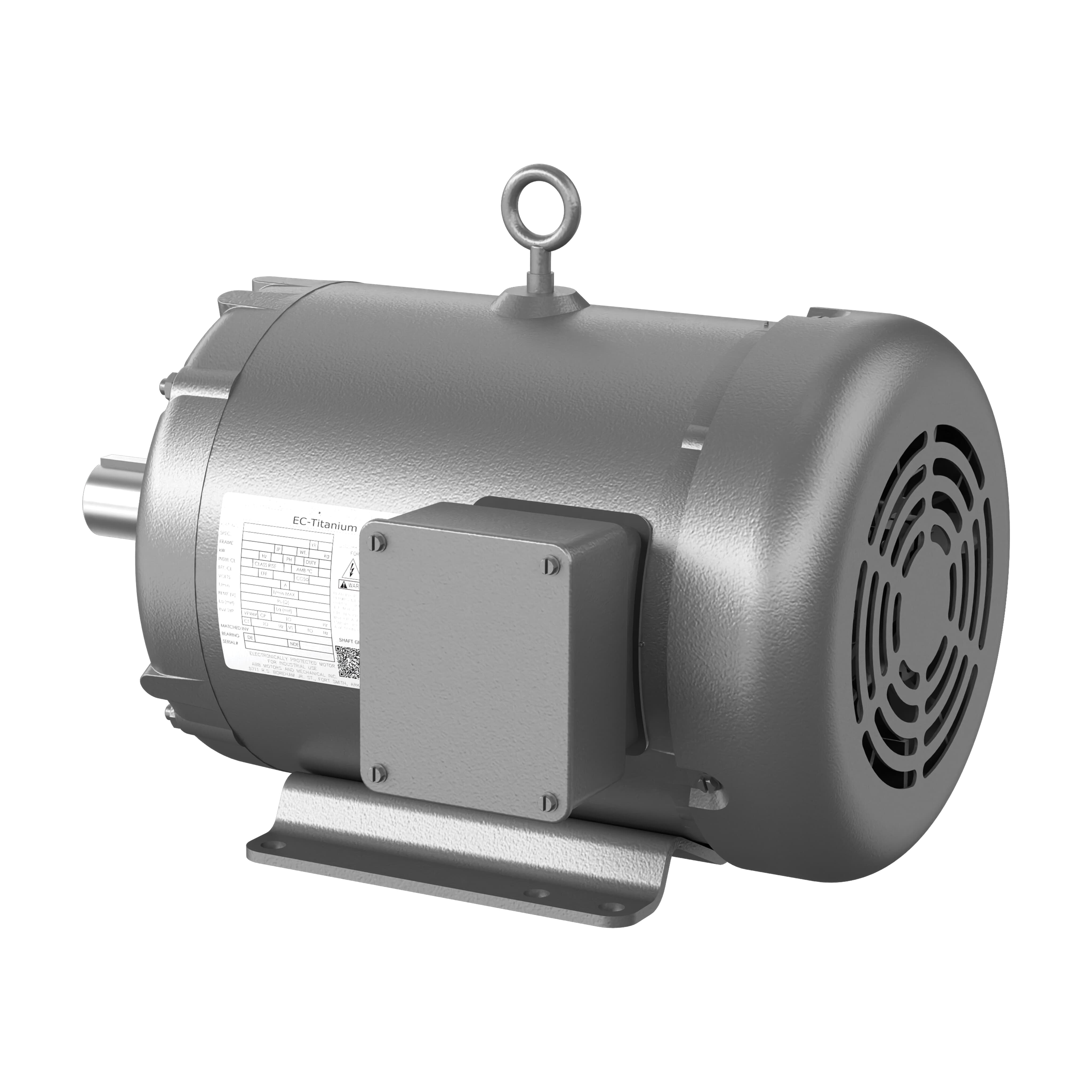

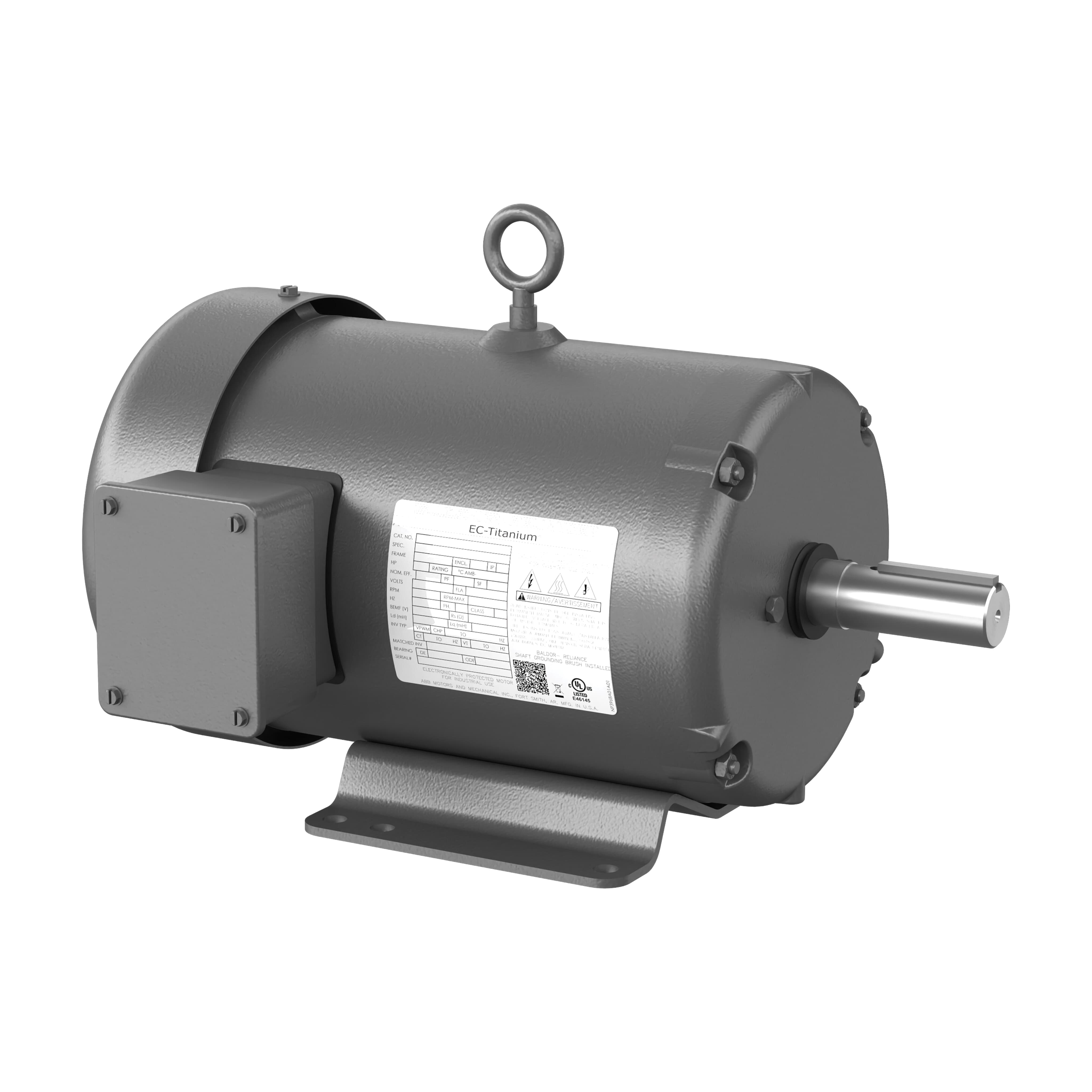

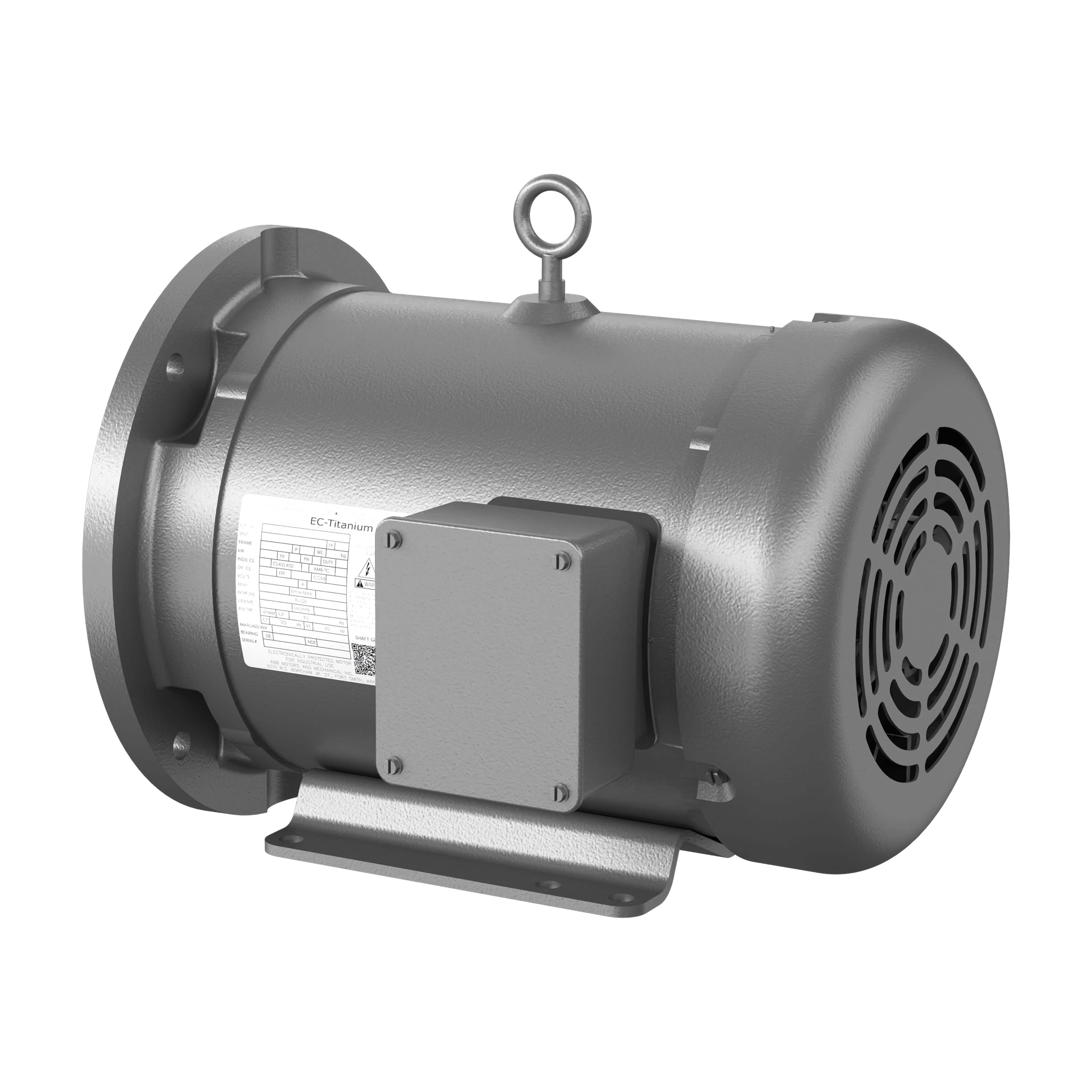

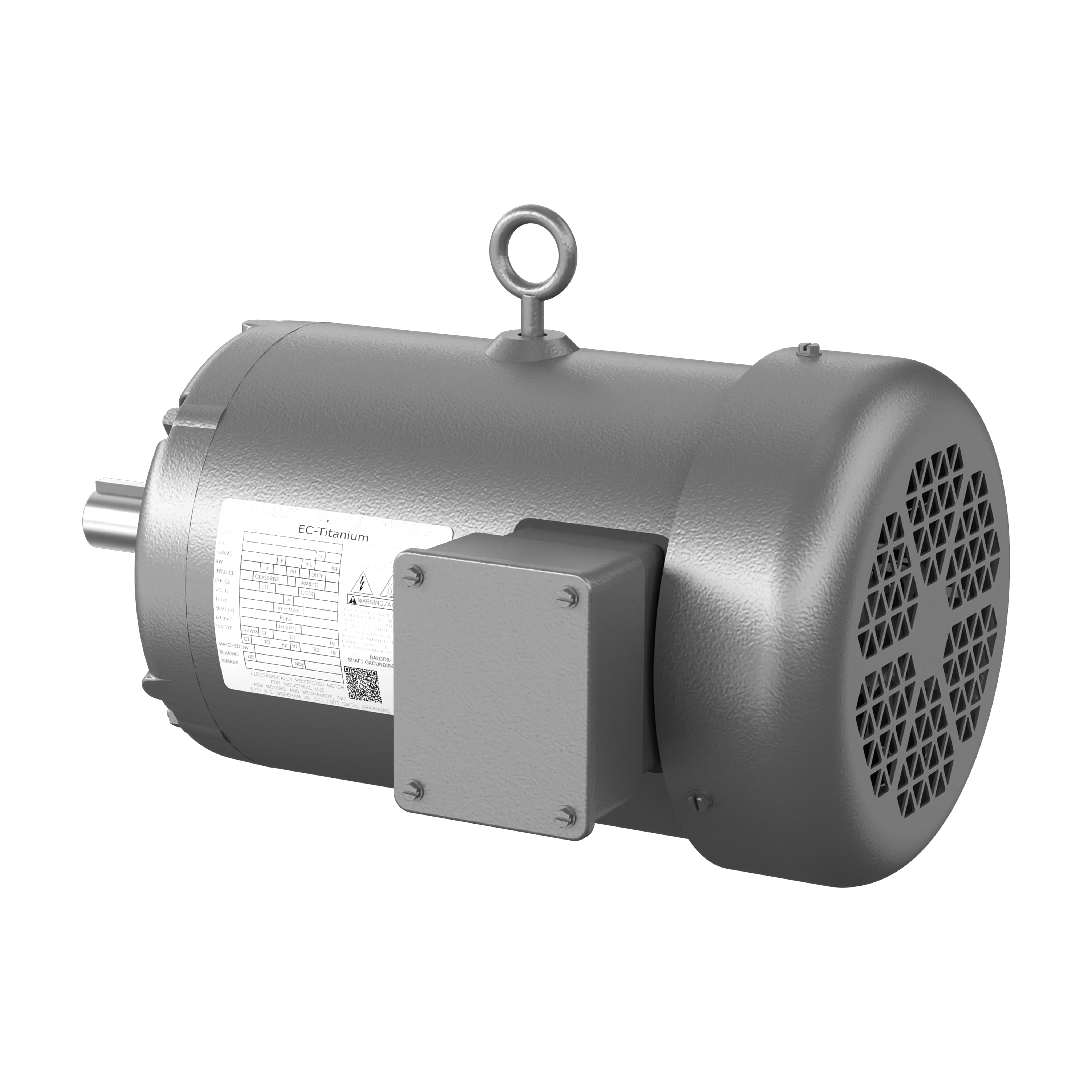

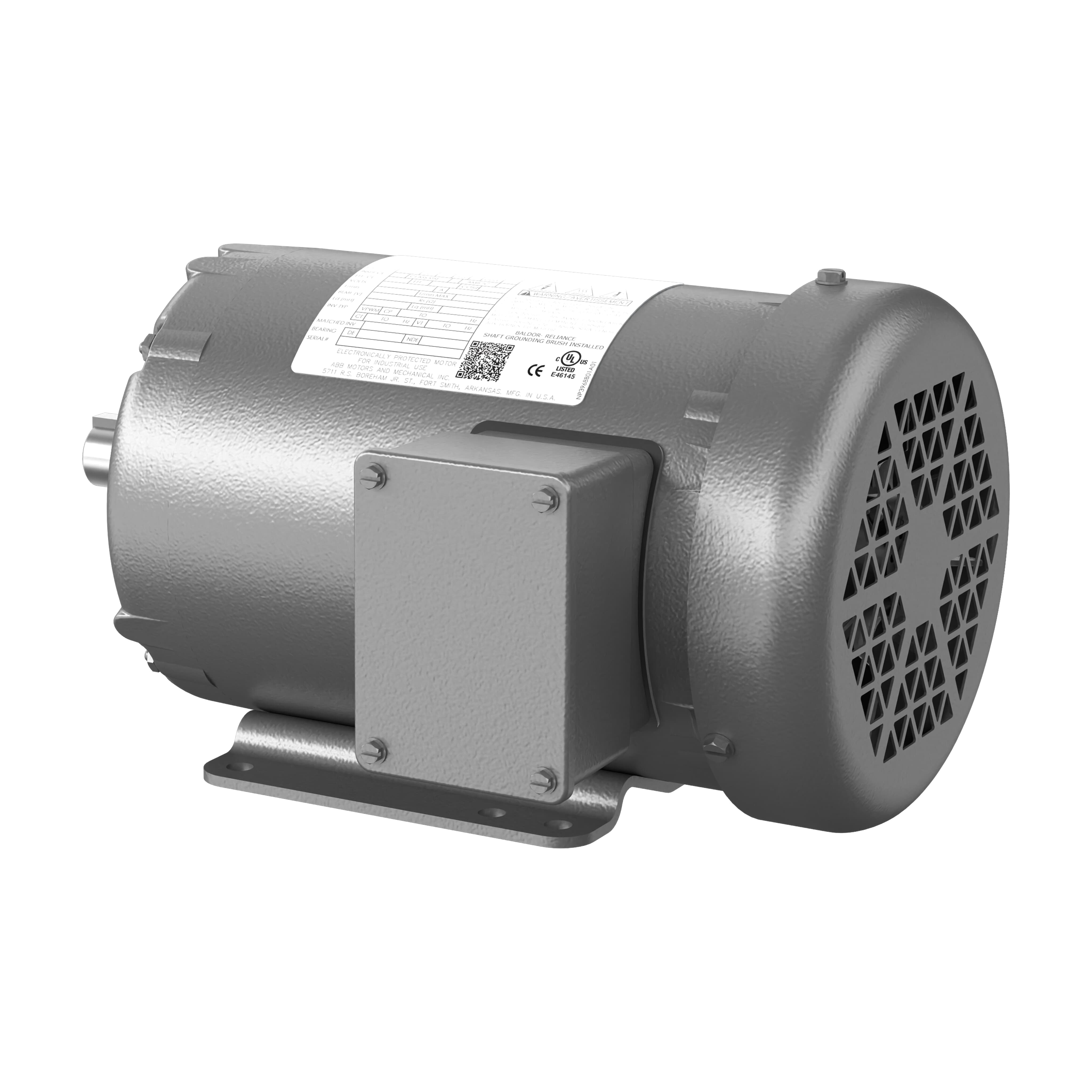

EC Titanium motor (General Purpose SP5+)

New ABB Motors » EC Titanium motor (General Purpose SP5+)
Sort by:
Baldor ECS101M0H10FB4 $2,570.77
Baldor ECS101M0H10FC4 $2,570.77
Baldor ECS101M0H10FF4 $2,539.35
Baldor ECS101M0H15FB4 $3,557.70
Baldor ECS101M0H15FC4 $3,557.70
Baldor ECS101M0H15FF4 $3,526.28
Baldor ECS101M0H1DB4 $1,208.38
Baldor ECS101M0H1DC4 $1,208.38
Baldor ECS101M0H1DF4 $1,176.19
Baldor ECS101M0H2DB4 $1,321.78
Baldor ECS101M0H2DC4 $1,321.78
Baldor ECS101M0H2DF4 $1,290.37
Baldor ECS101M0H3DB4 $1,384.61
Baldor ECS101M0H3DC4 $1,384.61
Baldor ECS101M0H3DF4 $1,352.43
Baldor ECS101M0H3EB4 $1,445.91
Baldor ECS101M0H3EC4 $1,445.91
Baldor ECS101M0H3EF4 $1,414.50
Baldor ECS101M0H5DB4 $1,501.85
Baldor ECS101M0H5DC4 $1,501.85
Baldor ECS101M0H5DF4 $1,470.43
Baldor ECS101M0H5EB4 $1,557.02
Baldor ECS101M0H5EC4 $1,557.02
Baldor ECS101M0H5EF4 $1,524.84
Baldor ECS101M0H7EB4 $1,868.12
Baldor ECS101M0H7EC4 $1,868.12
Baldor ECS101M0H7EF4 $1,835.94
Baldor ECS101M0H7FB4 $2,179.22
Baldor ECS101M0H7FC4 $2,179.22
Baldor ECS101M0H7FF4 $2,147.03
Baldor ECS101M0K0P8DC4 $1,572.35
Baldor ECS101M0K0P8DD4 $1,638.24
Baldor ECS101M0K0P8DF4 $1,393.81
Baldor ECS101M0K11FB4 $4,110.93
Baldor ECS101M0K11FE4 $4,158.44
Baldor ECS101M0K11FF4 $3,934.69
Baldor ECS101M0K1P5DC4 $1,632.88
Baldor ECS101M0K1P5DD4 $1,688.05
Baldor ECS101M0K1P5DF4 $1,456.64
Baldor ECS101M0K2P2DC4 $1,694.18
Baldor ECS101M0K2P2DD4 $1,763.14
Baldor ECS101M0K2P2DF4 $1,517.94
Baldor ECS101M0K2P2EC4 $1,981.52
Baldor ECS101M0K2P2ED4 $2,027.50
Baldor ECS101M0K2P2EF4 $1,805.29
Baldor ECS101M0K3EC4 $2,188.41
Baldor ECS101M0K3ED4 $2,237.45
Baldor ECS101M0K3EF4 $1,930.95
Baldor ECS101M0K4EC4 $2,308.71
Baldor ECS101M0K4ED4 $2,356.22
Baldor ECS101M0K4EF4 $2,026.73
Baldor ECS101M0K5P5FC4 $3,051.21
Baldor ECS101M0K5P5FD4 $3,098.72
Baldor ECS101M0K5P5FF4 $2,547.78
Baldor ECS101M0K7P5FB4 $3,428.97
Baldor ECS101M0K7P5FE4 $3,476.48
Baldor ECS101M0K7P5FF4 $3,179.94
Baldor ECS101M4H20FB4 $3,867.26
Baldor ECS101M4H20FC4 $3,867.26
Baldor ECS101M4H20FF4 $3,835.08
Baldor ECS101M5H10FB4 $2,828.23
Baldor ECS101M5H10FF4 $2,792.98
Baldor ECS101M5H15FB4 $3,913.24
Baldor ECS101M5H15FF4 $3,878.76
Baldor ECS101M5H1DB4 $1,329.44
Baldor ECS101M5H1DF4 $1,294.20
Baldor ECS101M5H20FB4 $4,254.22
Baldor ECS101M5H20FF4 $4,218.97
Baldor ECS101M5H2DB4 $1,454.34
Baldor ECS101M5H2DF4 $1,419.10
Baldor ECS101M5H3DB4 $1,523.31
Baldor ECS101M5H3DF4 $1,488.06
«12»

Servo Lab Capabilities

We have documented 96 different Servo Manufacturer repair reports in our Database
We repair AC Servos, DC Servos, AC Spindles, and AC Actuators
Capable of 24-hour repairs in many cases
We have thousands of spare and rebuilt motors in our inventory for parts or exchange motors

Servo Lab Repair Procedures

  1. Data

    Motor nameplate data is recorded

  2. Inspection

    A visual inspection of any damage to the motor.

    We check for
    • Damaged Leads/Terminals
    • Worn output shaft/keyways
    • Cracks in end bells or covers

  3. Job Ticket

    We complete to full write up off all motor data

    Including
    • All winding tests (Resistance, Meg Ω, Continuity)
    • All bearing sizes
    • All seal sizes
    • Brake torque tests (Record Torque, winding resistance)
    • Feedback Tests (Tachometer/Encoder)

  4. Motor Disassembly

    • Bearing and seal sizes are recorded
    • Bearing fits are measured on shaft and End bell
    • Brake torque is measured as well as resistance and Meg Ω
    • More winding tests are performed (Surge and HiPOT tests)
    • Stator is then washed and baked in oven
    • Magnets are inspected for cracks or if loose on shaft
    • Encoder is tested with either (Heidenhain PWM20, Sick PGT-11, or Mitchell Electronics equipment)

  5. Assembly

    • New bearings are installed
    • New seals are installed
    • If required, new windings are impregnated
    • Brakes are rebuilt or replaced depending on manufacturer design.
    • Rebuilt or New encoders are installed and aligned using:
    • (Heidenhain PWM20, Sick PGT-11, or Mitchell Electronics equipment)

  6. Rotor Balancing and Testing

    • Rotor is run through a full vibration diagnostic

  7. Run Testing

    • Every Motor is Run for a minimum of 1 hour using one of our drives.
    • We use Siemens S110, S120, IndraDrive, AB Kinetix 300, Yaskawa 7, and AMC drives

  8. Service Report

    • A Final 3-page Service Report is filled out
    • Pinout diagram for power and feedback is provided
    • Brake torque is recorded a final time for our Service Reports
    • A photo of nameplate and motor is attached
    • A motor tag is installed on motor with QR code linking Service Report and Job Histories
    • If requested, a YouTube link is attached to the service report of motor
ISO 9001:2000 Registered Electrical Apparatus Service Association
